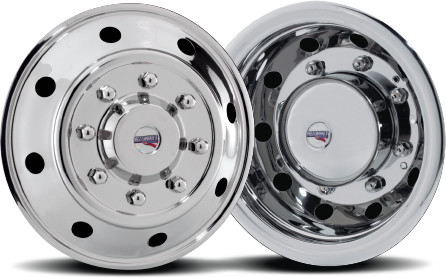

19.5" American Road Simulator

American Road Series
(Round Holes)

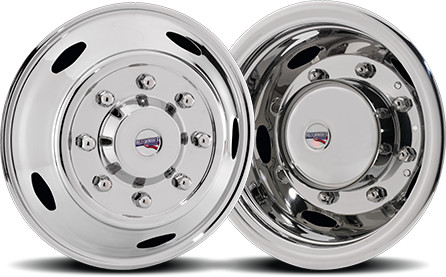

19.5" Classic Simulator

Classic Series
(Oval Holes)

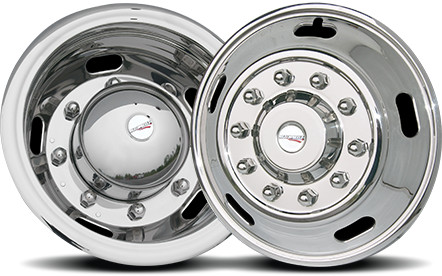

19.5" G-Series Simulators

E-Series
(Extruded Holes)

19.5" Features

19-truck

19-dodge

10-Lug For Ford, Chevy & Dodge Wheels
(4×4 open center available)

Stainless Steel Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.

  • For standard hub piloted and stud piloted wheels.
  • High-quality, non-magnetic 304L stainless steel—will not rust, pit, corrode or turn yellow.
  • Trailer Simulators – Match your trailer wheels to your truck wheels with RealWheels simulators.

pop-in center
Pop-In Centers for easy oil cap viewing.

Made in USA, Lifetime Guarantee, Mirror Shine Finish

Mounting

RealWheels has over 30 years’ experience developing mounting systems for wheel simulators. Our innovative designs have been awarded numerous patents.

  • The hook mount systems do not require excess stud.
  • These systems do not disturb the torque of the lug nuts.

Front Hook Mount

Front Hook Mount

Rear Hook Mount

Rear Hook Mount

Front Bridge Bracket

Front Bridge Bracket

Rear Bridge Bracket

Rear Bridge Bracket

Front Turn & Lock Bracket

Front Turn & Lock Bracket

Rear Turn & Lock Bracket

Rear Turn & Lock Bracket

19.5″ Front/Rear Stainless Steel Simulator Kits

Wheel Size Wheel Part Numbers Hub/Stub Piloted Lugs Hand Holes Mounting Style Model Number With Extensions
Sterling Bullet, Ram 4500 and Ram 5500
19.5″ x 6.00″ 10 5 Front Hook, Rear Bridge American Road RW1904-3AK RW1904-3AXK
19.5″ x 6.00″ 10 5 Front Hook, Rear Bridge Classic RW1904-3CK RW1904-3CXK
Freightliner MT35, MT45, FL50 and FL60; International 4600, 4700, 4900
19.5″ x 6.00″ 29388, 28853 Stud (1.5″) 6 2 Bridge Bracket American Road RW1906-2AK RW1906-2AXK
19.5″ x 6.00″ 29388, 28853 Stud (1.5″) 6 2 Bridge Bracket Classic RW1906-2CK RW1906-2CXK
19.5″ x 6.00″ 28179 Stud (1.5″) 6 6 Bridge Bracket American Road RW1906-2AK RW1906-2AXK
19.5″ x 6.00″ 28179 Stud (1.5″) 6 6 Bridge Bracket Classic RW1906-2CK RW1906-2CXK
Freightliner MT35, MT45, FL50 and FL60; International 4600, 4700 and 4900 Low Pro
19.5″ x 6.00″ 28179 Stud (1.5″) 6 6 Hook Mount American Road RW1900-279AK RW1900-279AXK
19.5″ x 6.00″ 28179 Stud (1.5″) 6 6 Hook Mount Classic RW1900-279CK RW1900-279CXK
Freightliner FL50 and FL60
19.5″ x 6.00″ 29715 Hub (33mm) 8 4 Hook Mount American Road RW1900-215AK RW1900-215AXK
19.5″ x 6.00″ 29715 Hub (33mm) 8 4 Hook Mount Classic RW1900-215CK RW1900-215CXK
19.5″ x 6.00″ 29717 Hub (33mm) 8 4 Hook Mount American Road RW1900-217AK RW1900-217AXK
19.5″ x 6.00″ 29717 Hub (33mm) 8 4 Hook Mount Classic RW1900-217CK RW1900-217CXK
Chevy/GMC P300, H22C, H22K
19.5″ x 6.00″ 27775 Hub (33mm) 10 5 Hook Mount American Road RW1900-375AK RW1900-375AXK
19.5″ x 6.00″ 27775 Hub (33mm) 10 5 Hook Mount Classic RW1900-375CK RW1900-375CXK
Hino, Fuso, Isuzu with 6 lug ball seat wheels
19.5″ x 6.00″ Topy 127 Stud (1.5″) 6 6 Turn & Lock Bracket American Road RW1963-27JEK RW1963-27JEXK
Chevy/GMC Kodiak C6500 and Topkick; Silverado 4500HD, 5500HD; Freightliner FL50, FL60, M2 Low Pro, 106 Low Pro; International 4600, 4700, 4900, 4200, 4300, and 4400 Low Pro; Kenworth K170 Low Pro and all Class 5
19.5″ x 6.75″ 28612, 28680, 50180 Hub (33mm) 8 4 Hook Mount American Road RW1900-280AK RW1900-280AXK
19.5″ x 6.75″ 28612, 28680, 50180 Hub (33mm) 8 4 Hook Mount Classic RW1900-280CK RW1900-280CXK
Chevy/GMC Kodiak C6500; Silverado 4500, 5500; Freightliner FL50 and FL60; International 4200, 4300, 4400
19.5″ x 6.75″ 29719, 50232 Hub (33mm) 8 5 Hook Mount American Road RW1900-248AK RW1900-248AXK
19.5″ x 6.75″ 29719, 50232 Hub (33mm) 8 5 Hook Mount American Road RW1900-248CK RW1900-248CXK
International 4300, 4600, 4700 and 4900 Low Pro
19.5″ x 6.75″ 29195 Hub (33mm) 10 5 Hook Mount American Road RW1910-395AK RW1910-395AXK
19.5″ x 6.75″ 29195 Hub (33mm) 10 5 Hook Mount Classic RW1910-395CK RW1910-395CXK

Ford F450/F550 Stainless Steel Simulator Kits

Wheel Size Wheel Part Numbers Hub/Stud Piloted Lugs Hand Holes Style Model Number With Extensions
Ford F-Super Duty (1998-2004)
19.5″ x 6.00″ 29186, 29584, 29745 Hub (33mm) 8 5 American Road RW1901-AOK RW1901-AOXK
19.5″ x 6.00″ 29186, 29584, 29745 Hub (33mm) 8 5 Classic RW1901-COK RW1901-COXK
19.5″ x 6.00″ 29186, 29584, 29745 Hub (33mm) 8 5 E-Series RW1901-EOK RW1901-EOXK
Ford F450 / F550
19.5″ x 6.00″ 29839, 29884, 8C34-1015-DB (F2567) Hub (33mm) 10 5 American Road RW1902-AOK RW1902-AOXK
19.5″ x 6.00″ 29839, 29884, 8C34-1015-DB (F2567) Hub (33mm) 10 5 Classic RW1902-COK RW1902-COXK
19.5″ x 6.00″ 29839, 29884, 8C34-1015-DB (F2567) Hub (33mm) 10 5 E-Series RW1902-EOK RW1902-EOXK
Ford Motor Home
19.5″ x 6.75″ 29236, 29585 Hub (33mm) 8 5 American Road RW1901-336AK RW1901-336AXK
19.5″ x 6.75″ 29236, 29585 Hub (33mm) 8 5 Classic RW1901-336CK RW1901-336CXK
Ford F450 / F550 Motor Home; Ford F53 and F59
19.5″ x 6.75″ 29879 Hub (33mm) 10 5 American Road RW19-AF59
19.5″ x 6.75″ 29879 Hub (33mm) 10 5 Classic RW19-CF59
19.5″ x 6.75″ 29879 Hub (33mm) 10 5 E-Series RW19-EF59


NOTE:
All Ford 4-wheel simulators include pop-in center
