Stainless Steel Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.

22.5” – 24.5” Styles

American Road 22.5″ – 24.5″ Stainless Steel Simulators

American Road Series

Classic Style 22.5″ – 24.5″ Stainless Steel Simulators

Classic Series

22.5” – 24.5” Features

24" simulators on truck

Stainless Steel Simulators really gives your truck an outstanding appearance.

  • Fits 20 / 22.5 x 7.50 / 8.25 / 9.00 and 22 / 24.5 x 8.25 wheels.
  • For standard hub piloted and stud piloted wheels.
  • Rear simulators fit wide-base wheels.
  • High-quality, non-magnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
  • Trailer Simulators – Match your trailer wheels to your truck wheels with RealWheels simulators.

pop-in center
Pop-In Centers for easy oil cap viewing.

Made in USA, Lifetime Guarantee, Mirror Shine Finish

NEW! GEN2 Rear Simulator Features

GEN2 Rear 22.5″ – 24.5″ Stainless Steel Simulators

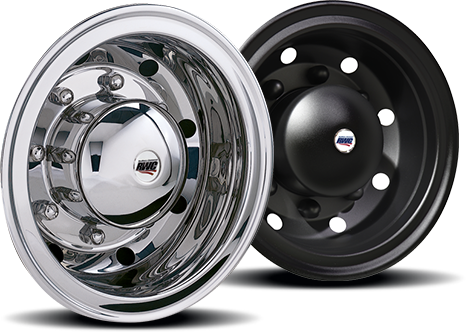

GEN2 Simulators and front simulators are available in a mirror or black powder-coated finish.

The New GEN2 Rear Simulators adds more features, easier installation and a lower cost.

The GEN2 RW2004 wheel simulator has many of the same great features our original UN2000. Same heavy gauge 304 non-magnetic stainless steel with a mirror shine finish to simulate the look of aluminum wheels.

New GEN2 Features:

  • NEW! Pressed on high hats, and lug nut covers, for easier installation and reduced weight
  • NEW! Low-profile, lug nut cover styling makes cleaning a snap.
  • NEW! Upgraded mounting systems with valve extensions tabs for easier installation and access.

GEN2 simulators fit all trucks and trailers with 10 lug hub piloted wheels

The GEN2 mounting systems are engineered to fit all 10 lug hub piloted wheels, and fit onto the excess stud of the lug nuts, even if there is as little as a ¼” of excess stud.

A Brief History of RWC’s Universal Rear Simulators

GEN2 22.5" – 24.5" Rear SimulatorIn the 90’s the only wheel simulators that were available for mid to heavy duty trucks with 20” or 22.5” wheels were imported from China. These simulators required removing lug nuts to install, and fit each wheel one for one. Because of this, there were over 12 different imported wheel sets to fit each wheel. Unfortunately, they also only simulated the look of the same steel wheel.

Then in 1994, Realwheels created and patented the RWUN2000. The first American Made universal rear wheel simulator for 20” and 22.5” wheels. With the UN2000 there was no need to remove lug nuts to install. It was universally designed to fit multiple truck wheels sizes, hub or stud piloted and with different hand hold configurations. Now distributors could stock one 22.5” rear wheel simulator that fit over 12 different wheel combinations.

Plus when the UN2000 was installed it simulated the look of aluminum wheels, the most desired wheel look.

Additionally they came standard with stainless steel braided air valve extensions, so a customer could easily check and fill tire pressure conveniently from the outside of the wheel simulator.

Now fast forward to 2020, 26 years later. RealWheels has created our latest universal rear wheel simulators with the new GEN2 22.5 rear wheel simulator, RW2004.

This GEN2 RW2004 wheel simulator has many of the same great features our original UN2000. Same heavy gauge 304 non-magnetic stainless steel with a mirror shine finish to simulate the look of aluminum wheels. Our new Gen 2 mounting system are still

This GEN2 RW2004 wheel simulator has many of the same great features our original UN2000. Same heavy gauge 304 non-magnetic stainless steel with a mirror shine finish to simulate the look of aluminum wheels. Our new Gen 2 mounting system are still adjustable and fits 22.5 X 7.50” 22.5” x 8.25” and 22.5 x 9.00” wheels.

What’s the difference?

GEN2 Rear Simulator Easy Bracket InstallationOur new GEN2 simulators now have pressed on high hats, and lug nut covers, for easier installation and reduced weight. The GEN2 mounting systems are engineered to fit all 10 lug hub piloted wheels, and fit onto the excess stud of the lug nuts, even if there is as little as a ¼” of excess stud. In the past our UN2000 would only fit a trucks drive axle. Now our new Gen2 22.5” simulators fits all trucks and trailers with 10 lug hub piloted wheels.

The biggest difference between our first Generation UN2000 rear simulator, and our new GEN2 rear simulator is cost. The UN2004 costs less than the predicessor and is more feature rich. At an unprecedented time when prices are rising RealWheels has engineered a new and improved American Made Rear simulator that costs less.

Mounting

RealWheels has over 30 years’ experience developing mounting systems for wheel simulators. Our innovative designs have been awarded numerous patents.

  • Engineered to fit securely to steel disc or aluminum wheels with our patented over-the-lug mounting systems.
  • The hook mount systems do not require excess stud.
  • These systems do not disturb the torque of the lug nuts.

Front Mounting Brackets

Front Hook Mount

Front Hook Mount

Front Bridge Bracket

Front Bridge Bracket

Rear Mounting Brackets

22.5" Wedge Lock Bracket

Wedge Lock Mount

22.5" Rear Bridge Bracket

Rear Bridge Bracket

Front Simulator Kits

Wheel Size Wheel Part Number Hub/Stud Piloted Lugs Hand Holes Style Front Bridge Front Hook
22.5 x 7.50 29001 Hub (33mm) 10 5 American Road RW1173-22101AK RW1173-33AK
22.5 x 7.50 29001 Hub (33mm) 10 5 Classic RW1173-22101CK RW1173-33CK
22.5 x 7.50 27403 Stud (1.5”) 10 2 American Road RW1173-23AK
22.5 x 7.50 27403 Stud (1.5”) 10 2 Classic RW1173-23CK
22.5 x 8.25 90260, 90541 Hub (33mm) 10 2 American Road RW1173-22101AK RW1173-205AK
22.5 x 8.25 90260, 90541 Hub (33mm) 10 2 Classic RW1173-22101CK RW1173-205CK
22.5 x 8.25 28408, 50408 Hub (33mm) 10 2 American Road RW1173-22101AK RW1173-24AK
22.5 x 8.25 28408, 50408 Hub (33mm) 10 2 Classic RW1173-22101CK RW1173-24CK
22.5 x 8.25 28487, 50487 Hub (33mm) 10 5 American Road RW1173-22101AK RW1173-34AK
22.5 x 8.25 28487, 50487 Hub (33mm) 10 5 Classic RW1173-22101CK RW1173-34CK
22.5 x 8.25 90262 Hub (33mm) 10 5 American Road RW1173-22101AK RW1173-305AK
22.5 x 8.25 90262 Hub (33mm) 10 5 Classic RW1173-22101CK RW1173-305CK
22.5 x 8.25 27404 Stud (1.5”) 10 2 American Road RW1173-24AK
22.5 x 8.25 27404 Stud (1.5”) 10 2 Classic RW1173-24CK
22.5 x 8.25 87460 Stud (1.5”) 10 2 American Road RW1173-22101AK RW1173-260AK
22.5 x 8.25 87460 Stud (1.5”) 10 2 Classic RW1173-22101CK RW1173-260CK
22.5 x 8.25 87905 Stud (1.5”) 10 2 American Road RW1173-22101AK RW1173-305AK
22.5 x 8.25 87905 Stud (1.5”) 10 2 Classic RW1173-22101CK RW1173-305CK
22.5 x 8.25 87904 Stud (1.5”) 10 5 American Road RW1173-22101AK RW1173-205AK
22.5 x 8.25 87904 Stud (1.5”) 10 5 Classic RW1173-22101CK RW1173-205CK
22.5 x 9.00 29039 Hub (33mm) 10 5 American Road RW1173-22102AK RW1173-59AK
22.5 x 9.00 29039 Hub (33mm) 10 5 Classic RW1173-22102CK RW1173-59CK
22.5 x 9.00 29300 Hub (33mm) 10 5 American Road RW1173-22102AK RW1173-300AK
22.5 x 9.00 29300 Hub (33mm) 10 5 Classic RW1173-22102CK RW1173-300CK
22.5 x 9.00 28510 Stud (1.5”) 10 2 American Road RW1173-20AK
22.5 x 9.00 28510 Stud (1.5”) 10 2 Classic RW1173-20CK
24.5 x 8.25 28409, 28827 Hub (33mm) 10 2 American Road RW1177-26AK
24.5 x 8.25 28409, 28827 Hub (33mm) 10 2 Classic RW1177-26CK
24.5 x 8.25 28641 Hub (33mm) 10 5 American Road RW1177-36AK
24.5 x 8.25 28641 Hub (33mm) 10 5 Classic RW1177-36CK
24.5 x 8.25 27406, 28410 Stud (1.5”) 10 2 American Road RW1177-26AK
24.5 x 8.25 27406, 28410 Stud (1.5”) 10 2 Classic RW1177-26CK

Rear Simulator Kits with Air Valve Extensions

Wheel Size Hub/Stud Piloted Style Rear Bridge Rear Wedge
22.5″ Hub (33mm) American Road RW2004-300AXK RW2004-301AXK
22.5″ Hub (33mm) Classic RW2004-300CXK RW2004-301CXK
22.5″ Stud (1.5”) American Road RWWLS2003-AXK
22.5″ Stud (1.5”) Classic RWWLS2003-CXK
24.5″ Hub (33mm) American Road RW2404-300AXK RW2404-301AXK
24.5″ Hub (33mm) Classic RW2404-300CXK RW2404-301CXK
24.5″ Stud (1.5”) American Road RWWLS2401-AXK
24.5″ Stud (1.5”) Classic RWWLS2401-CXK
