20” and 22.5” Super Single Simulators for heavy duty front axles offer the only flush profile in the industry. This flush profile is crucial to maintain mandatory width offsets.

Super Single Styles

Super Single Simulator RW1130

RW1130 w/Pop-In Center

Super Single Simulator RW1133LKO

RW1133LKO w/Pop-In Center

Super Single Simulator Premounted Lug Nuts

RW1160LK-34C (Classic Style)
Premounted Lug Nut Covers

Super Single Simulator Bump-out Design

RW1160BK-34A
Lug Nut Bump-out Design

Super Single Features

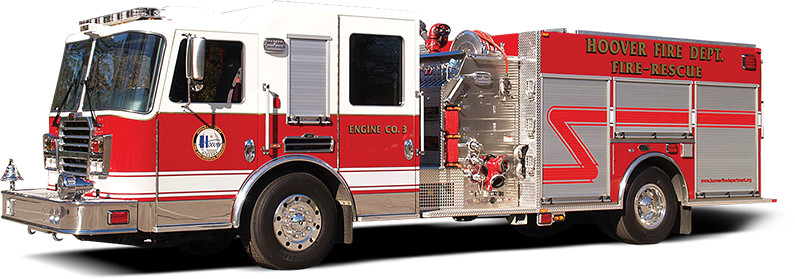

ss-fire-truck

Before After

Our simulators install easily on most super single wheels.

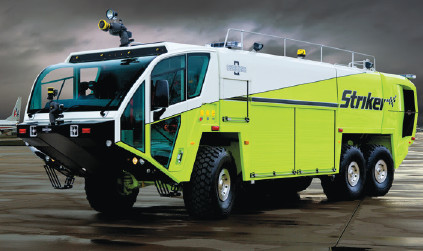

ss-striker

Custom Sizes Available
RealWheels Super Single Covers can be designed to fit any super single wheel, even airport ARFF units.

These super single wheel covers are designed for heavy-rated front axles.

  • High-quality, non-magnetic 304L stainless steel—will not rust, pit, corrode or turn yellow.
  • For super single front hub piloted and stud piloted wheels.
  • Fits 20/22.5 x 12.25 and 13.00 wheels.
  • Simplified over-the-lug, patented mounting system.
  • For heavy rated front axles.
  • Easy D.O.T. Inspection.

Lug Nut Bump-out Design (RW1160BK-34A)

With our Integrated Lug Nut Cover Design, you get the styling of lug nuts, yet cleaning is a snap since you don’t have the full lug nut cover to wash around.

pop-in center
Pop-In Centers for easy oil cap viewing.

Made in USA, Lifetime Guarantee, Mirror Shine Finish

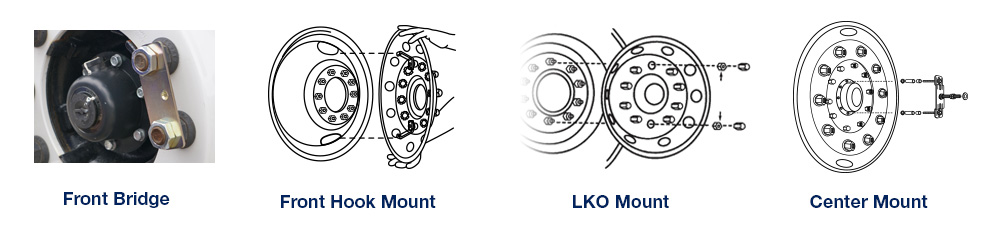

Mounting

Super Single Mounting SystemsRealWheels has over 30 years’ experience developing mounting systems for wheel simulators. Our innovative designs have been awarded numerous patents.

  • Simplified over-the-lug patented mounting systems.

Super Single Front Simulators with Pop-In Centers (10 lug)

*For Classic Style change “A” to “C” in model number

Wheel Size Wheel Part Numbers Hub/Stud Piloted Hand Holds Bridge Bracket* Hook Mount* LKO Mount*
22.5 x 9.00 28192 Stud Piloted 0 RW1133LKO
22.5 x 12.25 28126 Stud Piloted 0 RW1133LKO
22.5 x 12.25 29218 / 29220 / 29815 Hub Piloted 2 RW1130-24AK
22.5 x 12.25 29054 Hub Piloted 5 RW1130-34AK
22.5 x 12.25 29806 Hub Piloted 5 RW1130-22101AK RW1130-306AK
22.5 x 12.25 29807 Hub Piloted 5 RW1130-22101AK RW1130-307AK
22.5 x 12.5 28803 Hub Piloted 5 RW1130-33AK
22.5 x 13.00 28803 Hub Piloted 5 RW1130-37AK

Super Single Front Simulators with Center Mount (10 lug)

*For Classic Style change “A” to “C” in model number

Wheel Size Premounted Lug Nuts Lug Nut Bump-out Design
22.5 x 9.00 RW1160LK-34A RW1160BK-34A
22.5 x 12.25 RW1160LK-34A RW1160BK-34A
22.5 x 13.00 RW1160LK-34A RW1160BK-34A
