RWC COMMERCIAL VEHICLE CATALOG
WE DON’T MAKE COMMERCIAL VEHICLES…
WE MAKE THEM LOOK AND PERFORM BETTER!
WHEEL COVERS / SIMULATORS
pg. 2-11
AXLE COVERS
pg. 12-19
TPMS AIRGUARD / AIR VALVE EXT
pg. 20-21

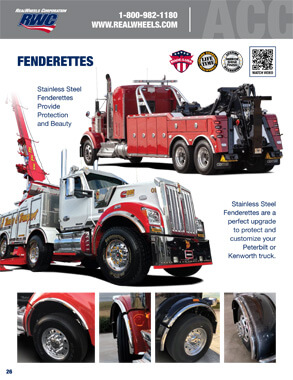

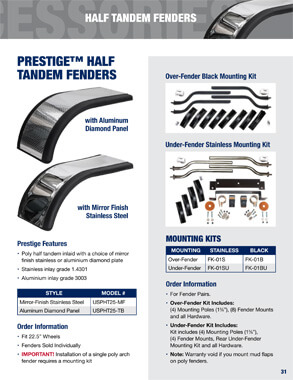

FENDERS / FENDERETTES
pg. 22-27
INTERIOR ACCESSORIES
pg. 28-34
REALWHEELS WAS THE FIRST TO INTRODUCE AERODYNAMIC WHEEL COVERS TO THE TRUCKING INDUSTRY!
Now decades later, we’ve created an Aerodynamic Cover with a twist…

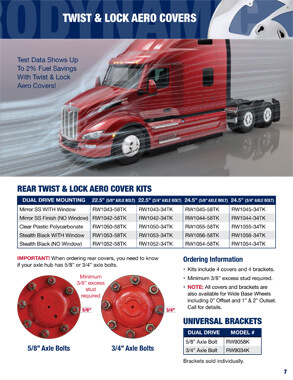

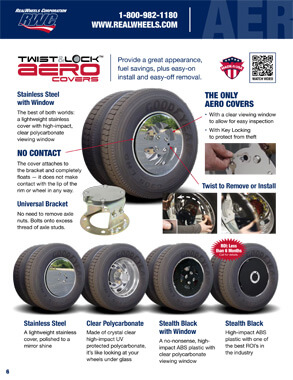

TWIST & LOCK™ AERO COVER KITS
Mirror Stainless Steel WITH Window
The best of both worlds: a lightweight stainless cover with high-impact, clear polycarbonate viewing window
Mirror Stainless Steel
A lightweight stainless cover, polished to a mirror shine
DUAL DRIVE MOUNTING 22.5” 5/8” AXLE BOLT 22.5” 3/4” AXLE BOLT 24.5” 5/8” AXLE BOLT 24.5” 3/4” AXLE BOLT
Mirror SS WITH Window RW1043-58TK RW1043-34TK RW1045-58TK RW1045-34TK
Mirror SS Finish (NO Window) RW1042-58TK RW1042-34TK RW1044-58TK RW1044-34TK
Clear Plastic Polycarbonate RW1050-58TK RW1050-34TK RW1055-58TK RW1055-34TK
Stealth Black WITH Window RW1053-58TK RW1053-34TK RW1056-58TK RW1056-34TK
Stealth Black (NO Window) RW1052-58TK RW1052-34TK RW1054-58TK RW1054-34TK
IMPORTANT! When ordering rear covers, you need to know if your axle hub has 5/8” or 3/4” axle bolts.
*Minimum 3/8” excess stud required.
5/8” Axle Bolts
3/4” Axle Bolts
• Kits include 4 covers and 4 brackets.
• Minimum 3/8” excess stud required.
• All covers also available for Wide Base Wheels including 0” Offset and 1” & 2” Outset. Call for details.
The cover attaches to the bracket and completely floats — it does not make contact with the lip of the rim or wheel in any way.
Patent Pending
2
AERODYNAMIC COVERS
The ONLY Aerodynamic Covers:
• With a clear viewing window to allow for easy inspection
• With Key Locking to protect from theft
Test Data Shows Up To 2% Fuel Savings With Twist & Lock Aero Covers!
RealWheels product video available
Easy Installation and Removal
Simply Twist & Remove or Twist & Install!
Also available for Dual Trailer, Widebase and Widebase Trailer.
MOUNTING BRACKETS
Brackets sold individually.
DUAL DRIVE MODEL #
5/8” Axle Bolt RW9058K
3/4” Axle Bolt RW9034K
Clear Polycarbonate
Made of crystal clear high-impact UV protected polycarbonate, it’s like looking at your wheels under glass
Stealth Black WITH Window
A no-nonsense, high-impact ABS plastic with clear polycarbonate viewing window
Stealth Black
High-impact ABS plastic with one of the best ROI’s in the industry
ROI: Less than 6 Months
Call for details.
1-800-982-1180
www.RealWheels.com
3

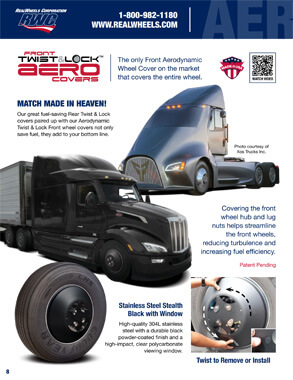

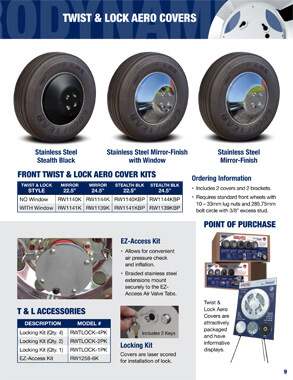

FRONT TWIST & LOCK™ AERO COVERS
The only Front Aerodynamic Wheel Cover on the market that covers the entire wheel.
• Kits include 2 covers and 2 brackets.
• Requires standard front wheels with 10 – 33mm lug nuts and 285.75mm bolt circle with 3/8” excess stud.
Stainless Steel Mirror Finish
WITH Window
Stainless Steel
Mirror Finish
Covering the front wheel hub and lug nuts helps streamline the front wheels, reducing turbulence and increasing fuel efficiency.
STYLE MIRROR FINISH STEALTH BLACK
Front Twist & Lock – No Window RW1140K RW1140KBP
Front Twist & Lock WITH Window RW1141K RW1141KBP
Easy Installation and Removal
No tools required to install and remove front covers.
Push in the black button, then push down on cover.
Rotate counter-clockwise and remove cover.
Attractively Packaged
Both front and rear Twist & Lock™ Covers come packaged.
Patent Pending
Stainless Steel Stealth Black
WITH Window
Stainless Steel
Stealth Black
The matching covers look awesome and complete the look of your aerodynamic truck.
Our great fuel-saving Rear Twist & Lock covers paired up with our new Aerodynamic Twist & Lock Front wheel covers not only save fuel, they add to your bottom line.
RealWheels product video available

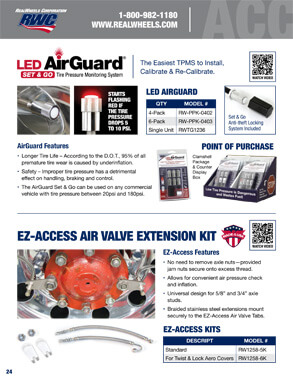

EZ-ACCESS AIR VALVE EXTENSION KIT
• Allows for convenient air pressure check and inflation.
• Braided stainless steel extensions mount securely to the EZ-Access Air Valve Tabs.
MODEL # RW1258-6K
RealWheels product video available
LOCKING KIT
All Twist & Lock Covers come laser scored for installation of lock.
AMOUNT MODEL #
4 Locks RWTLOCK-4PK
2 Locks RWTLOCK-2PK
1 Lock RWTLOCK-1PK
Includes two keys.
Twist & Lock™ Aero Cover Standing Display
AERODYNAMIC COVERS
1-800-982-1180
www.RealWheels.com
5

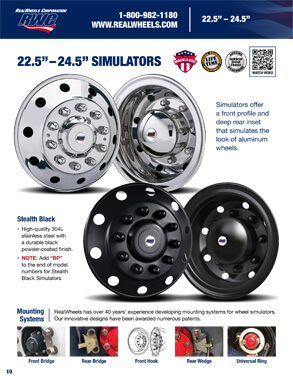

22.5” – 24.5” SIMULATORS
Simulators offer a front profile and deep rear inset that simulates the look of aluminum wheels.
RealWheels product video available
NEW! GEN2 Rear Simulators
• High-quality, non-magnetic 304L stainless — will not rust, pit, corrode or turn yellow.
• Engineered to fit securely to steel or aluminum wheels.
• The hook mount systems do not require excess stud.
• These systems do not disturb the torque of the lug nuts.
• Rear simulators fit wide-base wheels.
Pop-In Centers for easy oil cap viewing.
The New GEN2 Rear Simulators add more features, easier installation and a lower cost.
• GEN2 simulators fit all trucks and trailers with 10 lug hub piloted wheels
• NEW! Pressed on high hats and lug nut covers, for easier installation and reduced weight
• NEW! Low-profile lug nut cover styling makes cleaning a snap.
• NEW! Upgraded mounting systems with valve extensions tabs for easier installation and access.
6

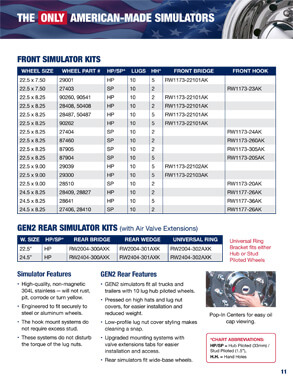

STAINLESS STEEL SIMULATORS
Front Simulator Kits
WHEEL SIZE WHEEL PART # HP/SP* LUGS H.H.* FRONT BRIDGE FRONT HOOK
22.5 x 7.50 29001 HP 10 5 RW1173-22101AK
22.5 x 7.50 27403 SP 10 2 RW1173-23AK
22.5 x 8.25 90260, 90541 HP 10 2 RW1173-22101AK
22.5 x 8.25 28408, 50408 HP 10 2 RW1173-22101AK
22.5 x 8.25 28487, 50487 HP 10 5 RW1173-22101AK
22.5 x 8.25 90262 HP 10 5 RW1173-22101AK
22.5 x 8.25 27404 SP 10 2 RW1173-24AK
22.5 x 8.25 87460 SP 10 2 RW1173-260AK
22.5 x 8.25 87905 SP 10 2 RW1173-305AK
22.5 x 8.25 87904 SP 10 5 RW1173-205AK
22.5 x 9.00 29039 HP 10 5 RW1173-22102AK
22.5 x 9.00 29300 HP 10 5 RW1173-22102AK
22.5 x 9.00 28510 SP 10 2 RW1173-20AK
24.5 x 8.25 28409, 28827 HP 10 2 RW1177-206AK
24.5 x 8.25 28641 HP 10 5 RW1177-306AK
24.5 x 8.25 27406, 28410 SP 10 2 RW1177-206AK
Rear Simulator Kits with Air Valve Extensions
WHEEL SIZE HP/SP* REAR BRIDGE REAR WEDGE
22.5” HP RW2004-300AXK RW2004-301AXK
24.5” HP RW2404-300AXK RW2404-301AXK
Universal Rear Simulator Kits with Extensions
HP/SP* 20”/22.5” RING 22”/24.5” RING
HP/SP RW2004-302AXK RW2404-302AXK
Simulators are also available in a black powder-coated finish
NOTE: Add “BP” to model numbers for black simulators
*CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
Mounting Systems
RealWheels has over 30 years’ experience developing mounting systems for wheel simulators. Our innovative designs have been awarded numerous patents.
Front Hook
Front Bridge
Rear Bridge
Rear Wedge
Universal Ring Mount
1-800-982-1180
www.RealWheels.com
7

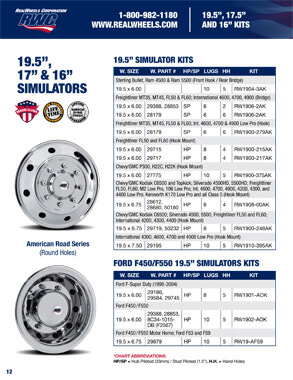

19.5” SIMULATORS
American Road Series
(Round Holes)
Classic Series
(Oval Holes)
19.5” Simulators Kits
*For Classic Style change “A” to “C” in model number
W. SIZE WHEEL PART # HP/SP LUGS H.H. KIT (Mounting)
Sterling Bullet, Ram 4500 & Ram 5500
19.5 x 6.00 10 5 RW1904-3AK (HB)
Freightliner MT35, MT45, FL50 & FL60; International 4600, 4700, 4900
19.5 x 6.00 29388, 28853 SP 6 2 RW1906-2AK (BB)
19.5 x 6.00 28179 SP 6 6 RW1906-2AK (BB)
Freightliner MT35, MT45, FL50 & FL60; Int. 4600, 4700 & 4900 Low Pro
19.5 x 6.00 28179 SP 6 6 RW1900-279AK (HM)
Freightliner FL50 and FL60
19.5 x 6.00 29715 HP 8 4 RW1900-215AK (HM)
19.5 x 6.00 29717 HP 8 4 RW1900-217AK (HM)
Chevy/GMC P300, H22C, H22K
19.5 x 6.00 27775 HP 10 5 RW1900-375AK (HM)
Hino, Fuso, Isuzu with 6 lug ball seat wheels
19.5 x 6.00 Topy 127 SP 6 6 RW1963-27JAK (TL)
Chevy/GMC Kodiak C6500 and Topkick; Silverado 4500HD, 5500HD; Freightliner FL50, FL60, M2 Low Pro, 106 Low Pro; Int. 4600, 4700, 4900, 4200, 4300, and 4400 Low Pro; Kenworth K170 Low Pro and all Class 5
19.5 x 6.75 28612, 28680, 50180 HP 8 4 RW1900-280AK (HM)
Chevy/GMC Kodiak C6500; Silverado 4500, 5500; Freightliner FL50 and FL60; International 4200, 4300, 4400
19.5 x 6.75 29719, 50232 HP 8 5 RW1900-248AK (HM)
International 4300, 4600, 4700 and 4900 Low Pro
19.5 x 7.50 29195 HP 10 5 RW1910-395AK (HM)
Ford F450/F550 19.5” Simulators Kits
*For Classic Style change “A” to “C” in model number and for E-Series change “A” to “E”
W. SIZE WHEEL PART # HP/SP LUGS H.H. KIT
Ford F-Super Duty (1998-2004)
19.5 x 6.00 29186, 29584, 29745 HP 8 5 RW1901-AOK
Ford F450 / F550
19.5 x 6.00 29839, 29884, 8C34-1015-DB (F2567) HP 10 5 RW1902-AOK
Ford Motor Home
19.5 x 6.75 29236, 29585 HP 8 5 RW1901-336AK
Ford F450 / F550 Motor Home; Ford F53 and F59
19.5 x 6.75 29879 HP 10 5 RW19-AF59
NOTE: All Ford 4-wheel simulators include pop-in center
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the model number (e.g. RW1906-2AXK)
BRACKET ABBREVIATIONS: BB = Bridge Bracket, HM = Hook Mount, HB = Front Hook / Rear Bridge, TL = Turn & Lock Bracket
8
STAINLESS STEEL SIMULATORS

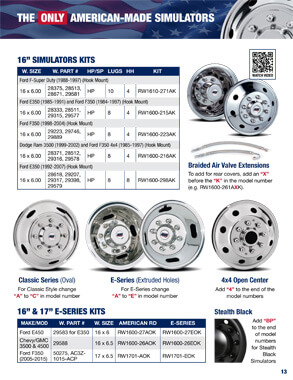

16”, 17.5” SIMULATORS
American Road Series (Round Holes)
E-Series (Extruded Holes)
4x4 Open Center
16” & 17.5” Simulators Kits
*For E-Series Style change “A” to “E” in model number
W. SIZE WHEEL PART # HP/SP LUGS H.H. KIT (Mounting)
Ford F-Super Duty (1988-1997)
16 x 6.00 28375, 28513, 28671, 29581 HP 10 4 RW1610-271AK (HM)
Ford E350 (1985-1991) and Ford F350 (1984-1997)
16 x 6.00 28333, 28511, 29315, 29577 HP 8 4 RW1600-215AK (HM)
Ford F350 (1998-2004)
16 x 6.00 29223, 29746, 29889 HP 8 4 RW1600-223AK (HM)
Dodge Ram 3500 (1999-2002) and Ford F350 4x4 (1985-1997)
16 x 6.00 28371, 28512, 29316, 29578 HP 8 4 RW1600-216AK (HM)
Ford E350 (1992-2007)
16 x 6.00 28618, 29207, 29317, 29398, 29579 HP 8 8 RW1600-298AK (HM)
Hino, Fuso, Isuzu with 6 lug ball seat wheels
16 x 6.00 Topy 127-9/128-9/135-9 SP 6 6 RW1663-67JAK (TL)
17.5 x 6.00 Topy 135-9 SP 6 6 RW1763-67JAK (TL)
E-Series Kits
MAKE/MODEL WHEEL PART # W. SIZE AMER. ROAD E-SERIES
Ford E450 29583 for E350 16 x 6 RW1600-27AOK RW1600-27EOK
Chevy/GMC 3500 & 4500 29588 16 x 6.5 RW1600-26AOK RW1600-26EOK
Ford F350 50275, (2005-2015) AC3Z-1015-ACP 17 x 6.5 RW1701-AOK RW1701-EOK
• For 4x4 Open Center add “4” to the end of the model number (e.g. RW1600-216AK4).
• To add Braided Air Valve Extensions (RW1258) for rear covers, add an “X” before the “K” in the model number (e.g. RW1600-261AXK).
CHART ABBREVIATIONS: HP/SP = Hub Piloted (33mm) / Stud Piloted (1.5”), H.H. = Hand Holes
1-800-982-1180
www.RealWheels.com
9
SIMULATORS FOR IMPORTS
Our Newest Full Simulators For Hino, Isuzu and Fuso Trucks
E-Series
American Road Series
(Integrated Bump-out Design Shown)
• Offers a front profile and deep rear inset that simulates the look of aluminum wheels.
• Highest-quality, non-magnetic, heavy-gauge stainless steel — will not rust, pit, corrode or turn yellow.
• Polished and buffed to a mirror-shine.
• New design offers a new lower price.
• No lug nuts to remove. Also no left and right hand thread adapters.
• Simple Turn & Lock installation.
E-Series: Extruded Holes with Pre-Attached Lug Nut Covers
American Road Series: Round Holes with Pre-Attached Lug Nut Covers or Integrated Bump-out Design
Front/Rear Kits For 6-Lug Ball Seat Wheels
SIZE AMERICAN ROAD STEALTH
16” RW1663-67JAK RW1663-67JAKBP
17.5” RW1763-67JAK RW1763-67JAKBP
E-SERIES STEALTH AMERICAN ROAD STEALTH AR BUMP-OUT STEALTH
FOR 19.5” 127, 128 TOPY WHEELS
RW1963-27JEK RW1963-27JEKBP RW1963-27JAK RW1963-27JAKBP RW1962-27JAK RW1962-27JAKBP
FOR 19.5” 135, 136 TOPY WHEELS
RW1963-35JEK RW1963-35JEKBP RW1963-35JAK RW1963-35JAKBP RW1962-35JAK RW1962-35JAKBP
For Simulator Kits with Extensions, add an “X” to the model number (ex. RW1663-67JEXK)
10
STAINLESS STEEL SIMULATORS FOR IMPORTS

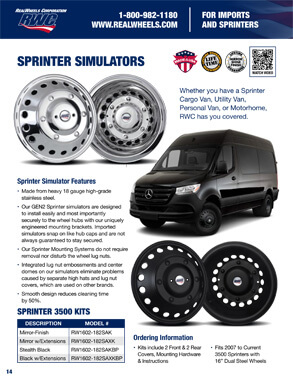

SPRINTER SIMULATORS
Whether you have a Sprinter Cargo Van, Utility Van, Personal Van, or Motorhome, RWC has you covered.
• Made from heavy 18 gauge high-grade stainless steel.
• Imported simulators snap on like hub caps not always guaranteed to stay secured.
• Our GEN2 Sprinter wheels simulators are designed to install easily and most importantly securely to the wheel hubs with our uniquely engineered mounting brackets.
• Our Sprinter Mounting Systems do not require removal nor disturb the wheel lug nuts
• Integrated lug nut embossments and center domes on our Sprinter simulators eliminate problems caused by separate high hats and lug nut covers, which are used on other brands.
• Smooth design reduces cleaning time by 50%.
Fits 2007 to Curr. 3500 Sprinters with 16” Dual Steel Wheels
STYLE MODEL #
Mirror-Finish RW1602-182SAK
Mirror w/Extensions RW1602-182SAXK
Stealth Black RW1602-182SAKBP
Black w/Extensions RW1602-182SAXKBP
Kits include 2 Front & 2 Rear Covers, Mounting Hardware & Instructions
RealWheels product video available
1-800-982-1180
www.RealWheels.com
11
STAINLESS STEEL SPRINTER SIMULATORS

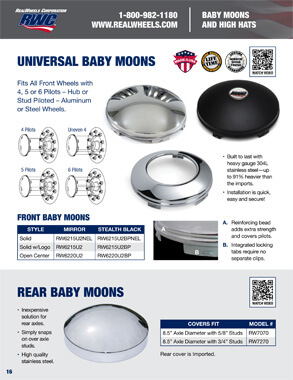

UNIVERSAL STAINLESS STEEL FRONT BABY MOONS
Fits All Front Wheels with 4, 5 or 6 Pilots – Hub or Stud Piloted – Aluminum or Steel Wheels.
4 Pilots
Uneven 4
5 Pilots
6 Pilots
STYLE MIRROR STEALTH BLACK
Solid RW6215U2NEL RW6215U2BPNEL
Solid w/Logo RW6215U2 RW6215U2BP
Open Center RW6220U2 RW6220U2BP
• Built to last with heavy gauge 304L stainless steel—up to 91% heavier than the imports.
• Installation is quick, easy and secure!
A: Reinforcing bead adds extra strength and covers pilots.
B: Integrated locking tabs require no separate clips.
RealWheels product video available

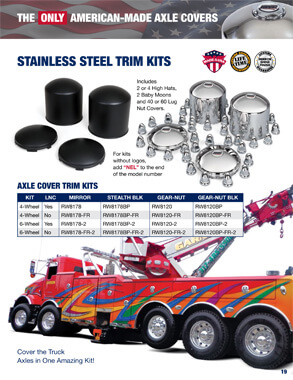

STAINLESS STEEL TRIM KITS
Includes 2 or 4 High Hats (RW7719SF), 2 Baby Moons (RW6215U2) and Lug Nut Covers (RW5810)
KIT LNC MIRROR FINISH STEALTH BLACK
4 Wheel Yes RW8116SF N/A
4 Wheel No RW8116SF-FR RW8116SFBP-FR
6 Wheel Yes RW8116SF-2 N/A
6 Wheel No RW8106SF-FR-2 RW8106SFBP-FR-2
LNC – Lug Nut Covers
12
AXLE COVERS

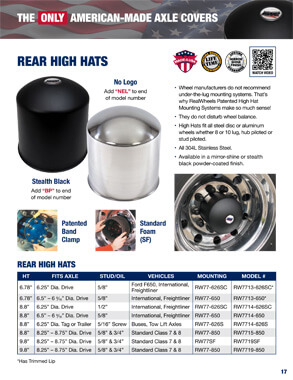

STAINLESS STEEL REAR HIGH HATS
• Wheel manufacturers do not recommend under-the-lug mounting systems. That’s why RealWheels Patented High Hat Mounting Systems make so much sense!
• They do not disturb wheel balance.
• High Hats fit all steel disc or aluminum wheels whether 8 or 10 lug, hub piloted or stud piloted.
• All 304L Stainless Steel.
• Includes (1) mounting bracket.
HT FITS AXLE STUD/OIL CAP VEHICLES MOUNTING MODEL #
6.78” 6.25” Dia. Drive 5/8” Ford F650, International, Freightliner RW77-626SC RW7713-626SCNEL*
6.78” 6.5” – 6 9⁄16” Dia. Drive 5/8” International, Freightliner RW77-650 RW7713-650NEL*
8.8” 6.25” Dia. Drive 1/2” International, Freightliner RW77-626SC RW7714-626SCNEL
8.8” 6.5” – 6 9⁄16” Dia. Drive 5/8” International, Freightliner RW77-650 RW7714-650NEL
8.8” 6.25” Dia. Tag or Trailer 5/16” Screw Buses, Tow Lift Axles RW77-626S RW7714-626SNEL
8.8” 8.25” – 8.75” Dia. Drive 5/8” & 3/4” Standard Class 7 & 8 RW77-850 RW7715-850NEL
8.8” 8.25” – 8.75” Dia. Drive 5/8” & 3/4” Standard Class 7 & 8 RW77SF RW7719SFNEL
9.8” 8.25” – 8.75” Dia. Drive 5/8” & 3/4” Standard Class 7 & 8 RW77-850 RW7719-850NEL
*Has Trimmed Lip
Patented Band Clamp
Standard Foam RW77SF
For kits With logos, remove “NEL” from the end of the model number
RealWheels product video available
REAR BABY MOONS
FITS MODEL #
8.5” Axle Diameter with 5/8” Studs RW7070
8.5” Axle Diameter with 3/4” Studs RW7270
• Inexpensive solution for rear axles.
• Simply snaps on over axle studs.
• High quality stainless steel.
• Imported.
1-800-982-1180
www.RealWheels.com
13

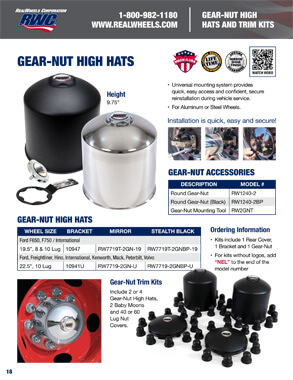

GEAR NUT AXLE COVERS
• Universal mounting system provides quick, easy access and confident, secure reinstallation during vehicle service.
• For Aluminum or Steel Wheels.
WHEEL SIZE BRACKET MIRROR STEALTH BLACK
Ford F650, F750 / International
19.5”, 8 & 10 Lug 10947 RW7719T-2GN-19 RW7719T-2GN-19BP
Ford, Freightliner, Hino, International, Kenworth, Mack, Peterbilt, Volvo
22.5”, 10 Lug 10941U RW7719-2GN-U RW7719-2GN-UBP
• Includes: (1) Rear Cover, (1) Bracket, (1) Gear Nut
• For kits without logos, add “NEL” to the end of the model number
Installation is quick, easy and secure!
Height 9.75”
Round Gear Nut
RW1240-2
Gear Nut Mounting Tool
RW2GNT
RealWheels product video available
GEAR-NUT STAINLESS STEEL TRIM KITS
• Includes 2 or 4 Gear-Nut High Hats (RW7719-2GN-U), 2 Baby Moons (RW6215U2) and Lug Nut Covers (RW5810)
KIT LNC MIRROR FINISH STEALTH BLACK
4 Wheel Yes RW8147 N/A
4 Wheel No RW8147-FR RW8147BP-FR
6 Wheel Yes RW8147-2 N/A
6 Wheel No RW8147-FR-2 RW8147BP-FR-2
LNC – Lug Nut Covers
14
AXLE COVERS

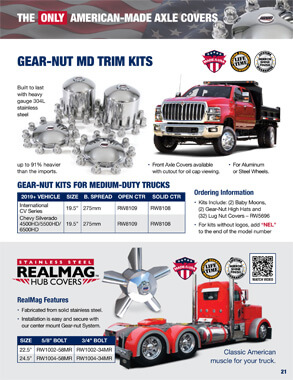

GEAR-NUT KITS FOR MEDIUM-DUTY TRUCKS
For 2019+ New International CV Series and Chevy Silverado 4500HD, 5500HD and 6500HD
• Built to last with heavy gauge 304L stainless steel—up to 91% heavier than the imports.
• Front Axle Covers available with cutout for oil cap viewing.
• For Aluminum or Steel Wheels.
2019+ VEHICLE SIZE BOLT SPREAD OPEN CENTER SOLID CENTER
International CV Series 19.5” 275mm RW8109 RW8108
Chevy Silverado 4500HD/5500HD/6500HD 19.5” 275mm RW8109 RW8108
Kits Include: (2) Baby Moons, (2) Gear-Nut High Hats and Lug Nut Covers – (16) RW5625 & (16) RW5696
• For kits without logos, add “NEL” to the end of the model number
REALMAG™ HUB COVERS
Classic American muscle for your truck.
• Fabricated from solid stainless steel.
• Installation is easy and secure with our center mount Gear-nut System.
SIZE 5/8” AXLE BOLT 3/4” AXLE BOLT
22.5” RW1002-58MR RW1002-34MR
24.5” RW1004-58MR RW1004-34MR
RealWheels product video available
1-800-982-1180
www.RealWheels.com
15

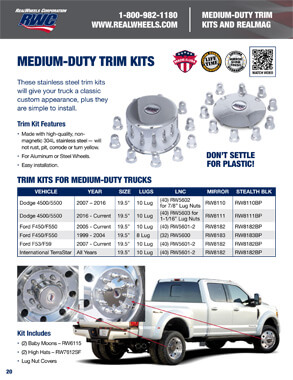

TRIM KITS FOR MEDIUM-DUTY TRUCKS
These stainless steel trim kits will give your truck a classic custom appearance, plus they are simple to install.
VEHICLE YEAR SIZE LUGS LUG NUT COVERS MODEL #
Dodge 4500/5500 2007 – 2016 19.5” 10 Lug (40) RW5602 for 7/8” Lug Nuts RW8110
Dodge 4500/5500 2016 - Current 19.5” 10 Lug (40) RW5603 for 1 1⁄16” Lug Nuts RW8111
Ford F450/F550 2005 - Current 19.5” 10 Lug (40) RW5601 RW8182
Ford F450/F550 1999 - 2004 19.5” 8 Lug (32) RW5600 RW8183
Ford F53/F59 2007 - Current 19.5” 10 Lug (40) RW5601 RW8182
International TerraStar All Years 19.5” 10 Lug (40) RW5601 RW8182
Kits Include:
(2) Baby Moons – RW6115,
(2) High Hats – RW7612SF,
Lug Nut Covers
• Made with high-quality, nonmagnetic 304L stainless steel — will not rust, pit, corrode or turn yellow.
• For Aluminum or Steel Wheels.
• Easy installation.
Don’t Settle For Plastic!
RealWheels product video available
16
AXLE COVERS

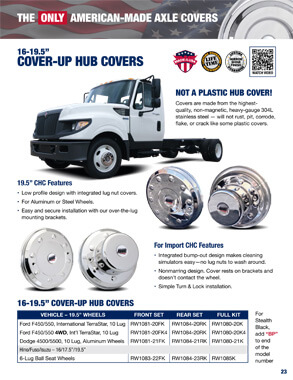

16, 17.5” & 19.5” COVER UP HUB COVERS
• Low profile design.
• For Aluminum or Steel Wheels.
• Will not crack like plastic when removing.
• Integrated Lug Nut Cover design.
• Easy and secure installation with our over-the-lug mounting brackets.
VEHICLE TYPE—19.5” FRONT SET REAR SET FRT/REAR KIT
Ford F450/550, International TerraStar, 10 Lug RW1081-20FK RW1084-20RK RW1080-20K
Ford F450/550 4WD, Int’l TerraStar, 10 Lug RW1081-20FK4 RW1084-20RK RW1080-20K4
Dodge 4500/5500, 10 Lug, Aluminum Wheels RW1081-21FK RW1084-21RK RW1080-21K
FOR IMPORT TRUCKS
NOT A PLASTIC HUB COVER.
• Covers are made from the highest-quality, nonmagnetic, heavy-gauge 304L stainless steel — will not rust, pit, corrode, flake, or crack like some plastic covers.
• Integrated bump-out design makes cleaning simulators easy—no lug nuts to wash around.
• Nonmarring Design. Cover rests on brackets and doesn’t contact the wheel.
• Simple Turn & Lock installation.
VEHICLE TYPE—16 / 17.5 / 19.5” FRONT SET REAR SET FRT/REAR KIT
Hino/Fuso/Isuzu, 6-Lug Ball Seat Wheels RW1083-22FK RW1084-23RK RW1085K
1-800-982-1180
www.RealWheels.com
17

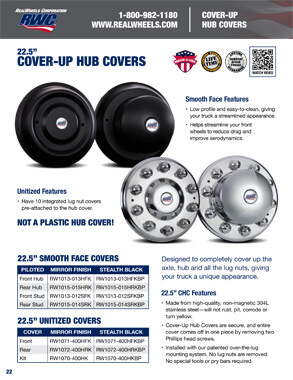

22.5” SMOOTH FACE COVER-UP HUB COVERS
“Cover-Up” Hub Covers are designed to completely cover up the axle, hub and all the lug nuts, giving your truck a unique appearance.
• Made from high-quality, non-magnetic 304L stainless steel—will not rust, pit, corrode or turn yellow.
• Cover-Up Hub Covers are secure and entire cover comes off in one piece by removing two Phillips head screws.
• Installed with our patented over-the-lug mounting system. No lug nuts are removed or disturbed. No special tools or pry bars are required.
• Patented “Wedge Lock” Bracket.
SMOOTH FACE FEATURES
• These low profile, Smooth Face “Cover-Up” Hub Covers are easy-to-clean and provide a streamlined appearance for your truck.
• Covering the hub and lug nuts helps streamline your front wheels to reduce drag and improve aerodynamics.
• Easy to clean on or off of the vehicle — no lug nuts to wash around.
PILOTED MIRROR FINISH STEALTH BLACK
Front Hub RW1013-013HFK RW1013-013HFKBP
Rear Hub RW1015-015HRK RW1015-015HRKBP
Front Stud RW1013-012SFK RW1013-012SFKBP
Rear Stud RW1015-014SRK RW1015-014SRKBP
RealWheels product video available
18
AXLE COVERS
22.5” UNITIZED COVER-UP HUB COVERS
These new Unitized Cover-Up Hub Covers have 10 integrated lug nut covers pre-attached to the hub cover.
UNITIZED FEATURES
• NOT A PLASTIC HUB COVER! Made from the highest-quality, non-magnetic, heavy-gauge 304L stainless steel — will not rust, pit, corrode, flake or crack like some plastic covers.
• Easy to clean on or off the truck or trailer.
STYLE MODEL#
Front RW1071-400HFK
Front Blk RW1071-400HFKBP
Rear RW1072-400HRK
Rear Blk RW1072-400HRKBP
Kit RW1070-400HK
Kit Blk RW1070-400HKBP
1-800-982-1180
www.RealWheels.com
19
LED AirGuard Set & Go Tire Pressure Monitoring System
• Longer Tire Life – According to the D.O.T., 95% of all premature tire wear is caused by underinflation.
• Safety – Improper tire pressure has a detrimental effect on handling, braking and control.
• The AirGuard Set & Go can be used on any commercial vehicle with tire pressure between 20psi and 180psi.
THE EASIEST TPMS TO INSTALL, CALIBRATE & RE-CALIBRATE.
STARTS FLASHING RED IF THE TIRE PRESSURE DROPS 5 TO 10 PSI.
No Special Tools or Key Required for Installation
4-PACK 6-PACK SINGLE UNIT
RW-PPK-0402 RW-PPK-0403 RWTG1236
Clamshell Package
4 or 6 packs
(5” x 8”)
Counter Display Box
(11” x 7.5” x 7”)
Counter Easel Card
(8.5” x 11”)
Set & Go Anti-theft Locking System Included
EZ-ACCESS AIR VALVE EXTENSION KIT
• No need to remove axle nuts—provided jam nuts secure onto excess thread.
• Allows for convenient air pressure check and inflation.
• Universal design for 5/8” and 3/4” axle studs.
• Braided stainless steel extensions mount securely to the EZ-Access Air Valve Tabs.
DESCRIPTION MODEL #
EZ-Access Kit RW1258-5K
EZ-Access Kit for Twist & Lock Aero Covers RW1258-6K
20
WHEEL ACCESSORIES

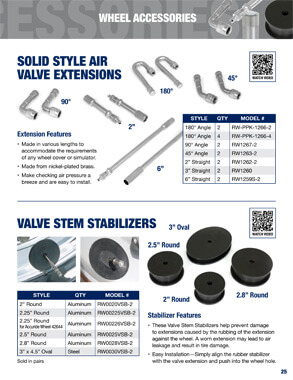

SOLID STYLE AIR VALVE EXTENSIONS
STYLE QUANTITY MODEL #
180° Angle 2 RW-PPK-1266-2
180° Angle 4 RW-PPK-1266-4
90° Angle 2 RW1267-2
45° Angle 2 RW1263-2
2” Straight 2 RW1262-2
3” Straight 2 RW1260
6” Straight 2 RW1259S-2
• Custom valve extensions are made in various lengths to accommodate the requirements of any wheel cover or simulator.
• Extensions are made from nickel-plated brass.
• Extensions make checking air pressure a breeze.
• Easy to install.
180° Angle
90° Angle
45° Angle
2” Straight
6” Straight
Clamshell Packaging for easy display
VALVE STEM STABILIZERS
• These Valve Stem Stabilizers help prevent damage to extensions caused by the rubbing of the extension against the wheel. A worn extension may lead to air leakage and result in tire damage.
• Easy Installation—Simply align the rubber stabilizer with the valve extension and push into the wheel hole.
SIZE WHEEL MODEL #
2” Round Aluminum RW0020VSB-2
2.25” Round Aluminum RW00225VSB-2
2.25” Round for Accuride Wheel 42644 Aluminum RW00226VSB-2
2.5” Round Aluminum RW0025VSB-2
2.8” Round Aluminum RW0028VSB-2
3” x 4.5” Oval Steel RW0030VSB-2
Aluminum Wheels
Steel Wheels
Sold in pairs.
1-800-982-1180
www.RealWheels.com
21

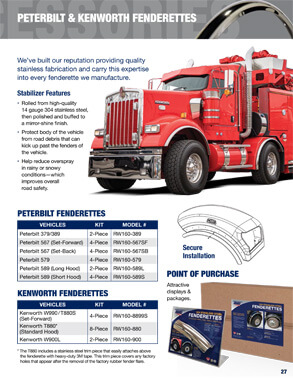

STAINLESS STEEL FENDERETTES PROVIDE PROTECTION AND BEAUTY
We’ve built our reputation providing quality stainless fabrication and carry this expertise into every fenderette we manufacture.
Shown with Unitized Cover Up Hub Covers
Secure Installation
Fenderettes Help Protect
• Protect body of the vehicle from road debris that can kick up past the fenders of the vehicle.
• Help reduce overspray in rainy or snowy conditions—which improves overall road safety.
Rolled from high-quality 14 gauge 304 stainless steel, then polished and buffed to a mirror-shine finish.
RealWheels product video available
22
FENDERETTES
Peterbilt Fenderettes
VEHICLES FENDERETTE MODEL #
Peterbilt 379/389 2-Piece Kit RW160-389
Peterbilt 567 (Set-Forward) 4-Piece Kit RW160-567SF
Peterbilt 567 (Set-Back) 4-Piece Kit RW160-567SB
Peterbilt 579 4-Piece Kit RW160-579
Kenworth Fenderettes
VEHICLES FENDERETTE MODEL #
Kenworth W990 / T880S (Set-Forward) 4-Piece Kit RW160-8899S
Kenworth T880* (Standard Hood) 8-Piece Kit RW160-880
Kenworth W900L 2-Piece Kit RW160-900
* The T880 includes a stainless steel trim piece that easily attaches above the fenderette with heavy-duty 3M tape. This trim piece covers any factory holes that appear after the removal of the factory rubber fender flare.
Fenderettes are attractively packaged.
Fenderette Counter Display
1-800-982-1180
www.RealWheels.com
23

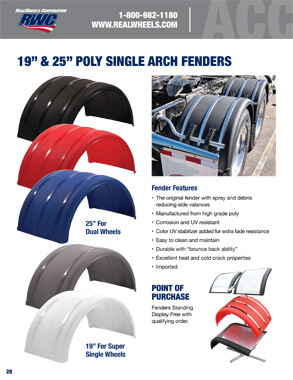

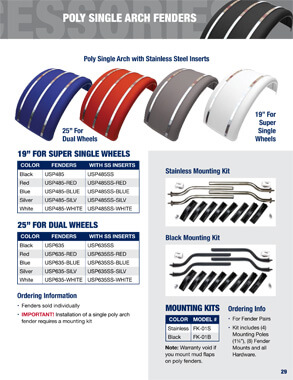

19” & 25” POLY SINGLE ARCH FENDERS
25” For Dual Wheels
19” For Super Single Wheels
For Super Single Wheels
SIZE COLOR MODEL #
19” Black USP485
19” Red USP485-RED
19” Blue USP485-BLUE
19” Silver USP485-SILV
19” White USP485-WHITE
For Dual Wheels
SIZE COLOR MODEL #
25” Black USP635
25” Red USP635-RED
25” Blue USP635-BLUE
25” Silver USP635-SILV
25” White USP635-WHITE
• Fenders Sold Individually
Fenders Standing Display
Free with qualifying order.
24
FENDERS
19” & 25” POLY SINGLE ARCH FENDERS WITH STAINLESS STEEL INSERTS
25” For Dual Wheels
19” For Super Single Wheels
For Dual Wheels
SIZE COLOR MODEL #
25” Black USP635SS
25” Red USP635SS-RED
25” Blue USP635SS-BLUE
25” Silver USP635SS-SILV
25” White USP635SS-WHITE
For Super Single Wheels
SIZE COLOR MODEL #
19” Black USP485SS
19” Red USP485SS-RED
19” Blue USP485SS-BLUE
19” Silver USP485SS-SILV
19” White USP485SS-WHITE
• Fenders Sold Individually
INSTALLATION OF A SINGLE POLY ARCH FENDER REQUIRES:
COMPLETE MOUNTING KITS
Kit includes (4) Mounting Poles (15⁄8”), (8) Fender Mounts and all Hardware. Enough for a pair of fenders.
STAINLESS MOUNTING KIT
FOR FENDER PAIRS
FK-01S
BLACK MOUNTING KIT
FOR FENDER PAIRS
FK-01B
Note: Warranty void if you mount mud flaps on poly fenders.
1-800-982-1180
www.RealWheels.com
25
POLY HALF TANDEM FENDERS
• Fenders Sold Individually
• Fits 22.5”
COLOR HALF MODEL # FULL MODEL #
Black USPHT25 USPFT25
Red USPHT25-RED USPFT25-RED
Blue USPHT25-BLUE USPFT25-BLUE
Silver USPHT25-SILV USPFT25-SILV
White USPHT25-WHITE USPFT25-WHITE
Full Models Include Joining Kit
USPHT-JK01
PRESTIGE™ HALF TANDEM FENDERS
STYLE MODEL #
Mirror Finish USPHT25-MF
Aluminum Diamond Panel USPHT25-TB
• Fenders Sold Individually
• Fit 22.5”
with Mirror Finish Stainless Steel
with Aluminum Diamond Panel
26
FENDERS
INSTALLATION OF A HALF TANDEM FENDER REQUIRES:
OVER-FENDER MOUNTING KITS
Kit includes (4) Mounting Poles (15⁄8”), (8) Fender Mounts and all Hardware. Enough for a pair of fenders.
STAINLESS MOUNTING KIT
FOR FENDER PAIRS
FK-01S
BLACK MOUNTING KIT
FOR FENDER PAIRS
FK-01B
UNDER-FENDER MOUNTING KITS
Kit includes (4) Mounting Poles (15⁄8”), (4) Fender Mounts, Rear Under-Fender Mounting Kit and all Hardware. Enough for a pair of fenders.
STAINLESS MOUNTING KIT
(WITH REAR UNDER-FENDER KIT)
FOR FENDER PAIRS
FK-01SU
BLACK MOUNTING KIT
(WITH REAR UNDER-FENDER KIT)
FOR FENDER PAIRS
FK-01BU
Note: Warranty void if you mount mud flaps on poly fenders.
1-800-982-1180
www.RealWheels.com
27

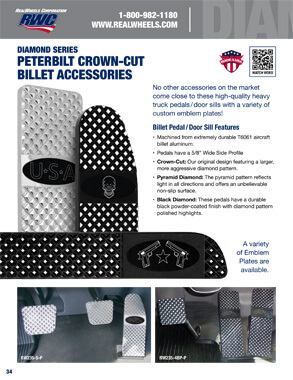

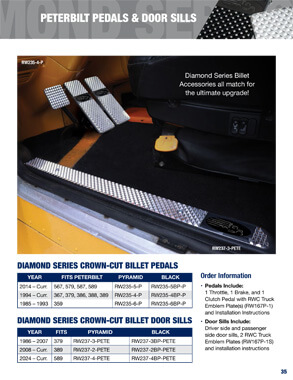

PETERBILT DIAMOND BILLET PEDALS
WITH OPTIONAL CUSTOM EMBLEMS
Peterbilt RW235-5-P
Peterbilt RW235-4BP-P
5/8” Wide Side Profile
YEAR FITS POLISHED BLACK
2014 – Curr. 567, 579, 587 RW235-5-P RW235-5BP-P
1994 – Curr. 367, 379, 386, 388, 389 RW235-4-P RW235-4BP-P
1985 – 93 359, 379 RW235-6-P RW235-6BP-P
Package Includes: 1 Throttle,1 Brake, and 1 Clutch Pedal, RWC Truck Emblem(s) & instructions
PETERBILT CUSTOM EMBLEMS
EMBLEM PEDAL DOOR SILL
RWC Truck* RW167P-1 RW167P-1S
Skull RW167P-2 RW167P-2S
Longhorn RW167P-3 RW167P-3S
USA RW167P-4 RW167P-4S
Dual Guns RW167P-5 RW167P-5S
Lady Silhouette RW167P-6 RW167P-6S
* This logo comes standard with pedals and door sills.
RealWheels product video available
28

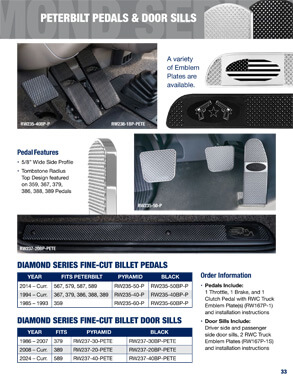

CUSTOM EMBLEM BILLET PEDALS & DOOR SILLS
THE ULTIMATE TRUCK INTERIOR UPGRADE
Available for Peterbilt 379 and 389 Trucks
Our Diamond Billet Pedals Match Our New Billet Door Sill
Peterbilt Billet Pedals
RW235-4-P
Peterbilt Billet Door Sills
RW237-2-PETE
PETERBILT DIAMOND BILLET DOOR SILLS
WITH OPTIONAL CUSTOM EMBLEMS
• These high-quality heavy truck pedals and door sills have an aggressive diamond pattern.
• Both machined from T6061 Aircraft Billet Aluminum
• Installation is quick and easy.
• Polished: Pyramid-cut diamond pattern reflects light in all directions and offers an unbelievable non-slip surface.
• Black: Durable black anodized finish with pyramid-cut diamond pattern polished highlights.
Package Includes:
Driver and passenger side door sills
RW237-2BP-PETE
YEAR FITS POLISHED BLACK ANODIZED
1986 – 2007 379 RW237-3-PETE RW237-3BP-PETE
2008 – Current 389 RW237-2-PETE RW237-2BP-PETE
Billet Pedals and Door Sills are attractively packaged.
Note: Product photos may vary slightly from actual product.
1-800-982-1180
www.RealWheels.com
29

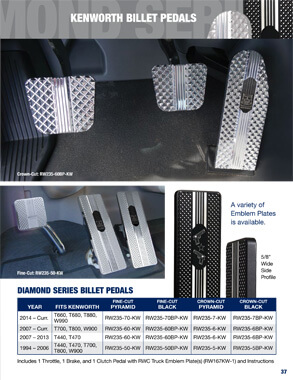

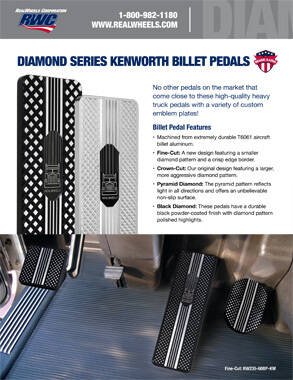

KENWORTH DIAMOND BILLET PEDALS
WITH OPTIONAL CUSTOM EMBLEMS
Kenworth RW235-6-KW
Kenworth RW235-5BP-KW
Kenworth RW235-7BP-KW
YEAR FITS KENWORTH POLISHED BLACK
2014 – Curr. T660, T680, T880, W990 RW235-7-KW RW235-7BP-KW
2007 – Curr. T700, T800, W900 RW235-6-KW RW235-6BP-KW
2007 – 2013 T440, T470 RW235-6-KW RW235-6BP-KW
1994 – 2006 T440, T470, T700, T800, W900 RW235-5-KW RW235-5BP-KW
Includes: 1 Throttle, 1 Brake, 1 Clutch Pedal & RWC Truck Emblem(s)
RealWheels product video available
30
CUSTOM EMBLEM BILLET PEDALS
KENWORTH CUSTOM EMBLEMS
RWC Truck:
RW167KW-1
This logo comes standard with pedals.
Skull:
RW167KW-2
Longhorn:
RW167KW-3
USA:
RW167KW-4
Dual Guns:
RW167KW-6
Lady Silhouette:
RW167KW-7
Changing Emblem Is Easy
Simply use the included 3M™ tape and press down.
BILLET PEDAL COUNTERTOP DISPLAY
Free with qualifying order.
Note: Display may vary slightly from actual product.

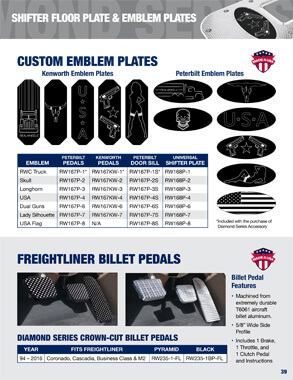

FREIGHTLINER BILLET PEDALS
Freightliner 1994 – 2016
Freightliner 1994 – 2016
YEAR FITS FREIGHTLINER POLISHED BLACK
1994 – 2016 Coronado, Cascadia, Business Class and M2 RW235-1-FL RW235-1BP-FL
1-800-982-1180
www.RealWheels.com
31

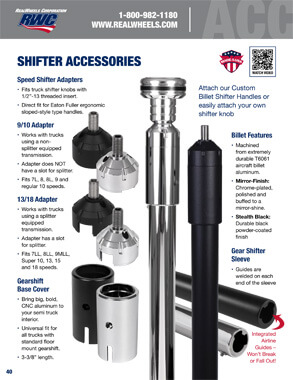

SHIFTER ACCESSORIES
Improve the look of your semi truck shifter with these accessories.
Polished:
Chrome Plated
Stealth Black:
Black Powder Coated
• Fits truck shifter knobs with 1/2-13 threaded insert.
• Direct fit for Eaton Fuller ergonomic sloped-style type handles.
9/10 Speed Shifter Adapter
Polished: RW241-1-HT
Black: RW241-1BP-HT
CNC aluminum shifter adapter for trucks using a non-splitter equipped transmission.
• Adapter does not have a slot for splitter.
• Fits 7L, 8, 8L, 9 and regular 10 speeds.
13/18 Speed Shifter Adapter
Polished: RW240-1-HT
Black: RW240-1BP-HT
CNC aluminum shifter adapter for trucks using a splitter equipped transmission.
• Adapter has a slot for splitter.
• Fits 7LL, 8LL, 9MLL, Super 10, 13, 15 and 18 speeds.
Gearshift Base Cover
Polished: RW245-1-HT
Black: RW245-1BP-HT
Bring big, bold, CNC aluminum to your semi truck interior
• Universal fit for all trucks with standard floor mount gearshift
• 3-3/8” L
Attach our Custom Billet Shifter Handle or easily attach your own shifter knob
32
SHIFTER ACCESSORIES
BIG BOLD LOOK!
BILLET SHIFTER HANDLES
Both are machined from aluminum and then chrome-plated for a mirror-shine or black powder coated for that stealth look.
“The Saber” Shifter Handle
Polished:
RW223-1-HT
Black:
RW223-1BP-HT
“Cool Grip” Shifter Handle
Polished:
RW223-2-HT
Black:
RW223-2BP-HT
Stainless Steel Gear Shifter Sleeve
Improve the look of your extended shifter shaft
SIZE POLISHED STEALTH BLACK
18” RW305-18-HT RW305-18BP-HT
20” RW305-20-HT RW305-20BP-HT
24” RW305-24-HT RW305-24BP-HT
30” RW305-30-HT RW305-30BP-HT
36” RW305-36-HT RW305-36BP-HT
Integrated Airline Guides – Won’t Break or Fall Out!
• Guides are welded on each end of the sleeve
• Available in 18”, 20”, 24”, 30” and 36” Length
1-800-982-1180
www.RealWheels.com
33
STEERING WHEEL SPINNER CLAMPS
Plain
Stealth Black
Dual Pistols
American Flag
• Machined from solid blocks of billet aluminum
• Polished and buffed to a high shine
• Rubber insert protects steering wheel and provides a sure grip
• Designs engraved on both sides
• Rotating ½”x13 Threaded Stud
• Installs easily—Instructions included
DESCRIPTION MODEL #
Plain RW239-1-HT
Stealth Black RW239-1BP-HT
American Flag Design RW239-2-HT
Dual Pistols Design RW239-3-HT
SPINNER KNOB NOT INCLUDED
Simply add your own knob for the ultimate in customization!

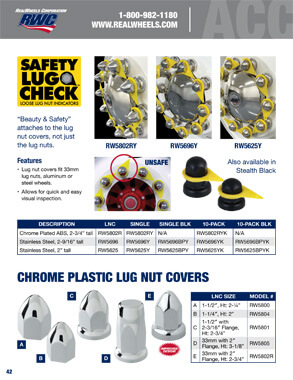

SAFETY LUG CHECK™
Lug Nut Cover Indicators
The only lug nut cover that provides safety, good looks, and a lug nut indicator.
• Fits 33mm lug nuts.
• High-quality, chrome plated ABS.
• Optional logo and reflective inserts available. Call for more Info.
DESCRIPTION SINGLE 10-PACK
33mm Lug Nut Cover RW5810 N/A
Lug Nut Cover w/ Black Indicator RW5810B RW5810BK
Lug Nut Cover w/ Yellow Indicator RW5810Y RW5810YK
Black Loose Lug Nut Indicator RW1273B N/A
Yellow Loose Lug Nut Indicator RW1273Y N/A
UNSAFE
ACCESSORIES
34

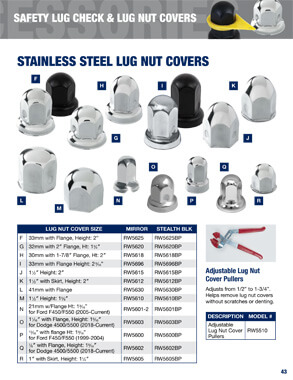

LUG NUT COVERS
Available in stainless steel or chrome plastic
Adjustable Lug Nut Pullers
RW5510
Adjusts from 1/2” to 1-3/4”. They help remove lug nut covers without scratches or denting.
CHROME PLASTIC
RW5804
1¼”
Height: 2”
RW5800
1½”
Height: 2¼”
RW5801
1½” w/ 2 3⁄16” flange
Height: 2 3⁄4”
RW5802R
IMPROVED DESIGN!
33mm w/ 2” flange
Height: 2 3⁄4”
RW5805
33mm w/ flange
Height: 3 1⁄8”
RW5810
Works with Safety Lug Check
33mm with flange
Height: 2 3⁄8”
STAINLESS STEEL
RW5696
33mm w/ flange
Height: 2 9⁄16”
RW5612
1½” with skirt
Height: 2”
RW5610
1½”
Height: 1 5⁄8”
RW5615
1½”
Height: 2”
RW5630
41mm with skirt
Height: 1 7⁄8”
RW5620
32mm with flange
Height: 1 3⁄4”
RW5625
33mm with flange
Height: 2”
RW5618
30mm with flange
Height: 2”
RW5605
1” with skirt
Height: 1 ¼”
RW5600
Ford F450/F550 1999-2004,
13⁄16” with flange
Height: 1 9⁄16”
RW5601
Ford F450/F550 2005-current,
13⁄16” with flange
Height: 1 9⁄16”
RW5602
Dodge 4500/5500 2018-current,
7⁄8” with flange
Height: 1 9⁄16”
RW5603
Dodge 4500/5500 2018-current,
1 1⁄16” with flange
Height: 1 9⁄16”
1-800-982-1180
www.RealWheels.com
35
FREIGHTLINER 108SD & 114SD STAINLESS STEEL GRILLE COVERS
• Made from high-grade, 304L stainless steel.
• Will never rust, corrode, pit or lose their shine.
• Formed to fit perfectly over your existing grille. No disassembly required.
• Easy installation. No tools required.
TRUCK DESCRIPTION MODEL #
114SD 5 slats RWG114
114SD 5 slats with cutouts for winter cover RWG114W
108SD 6 slats RWG108
108SD 6 slats with cutouts for winter cover RWG108W
FREIGHTLINER 112 DAY CAB REAR WINDOW GUARDS
Help Eliminate Cracked & Broken Rear Windows!
• Protect windows from kicked-up debris that occur while driving bobtail.
• Available in polished, heavy-gauge stainless steel. (Black ABS coming soon.)
• Installs securely.
• Window Guards available for Freightliner. (Other truck models coming soon.)
STYLE MODEL #
Pair of S.S. Window Guards and brackets RW112WG-FL
(1) S.S. Window Guard 112WG-FL
Pair of Window Guard brackets 112WG-B
Pair of Black ABS Window Guards and brackets* RW113WG-BP-FL
(1) Black Window Guard* 113WG-BP-FL
*Coming soon
ISO 9001:2015 Certified
Call 1-800-982-1180 for more information.
3905 Route 173 • Zion, IL 60099
847-662-7722 • Fax: 847-662-7744 • www.RealWheels.com
© 2022 RealWheels Corporation. All Rights Reserved. 9/12/22
